Talking about Track rollers of the Undercarriage Parts

Talking about Track rollers of the Undercarriage Parts

Undercarriage Parts for the track rollers

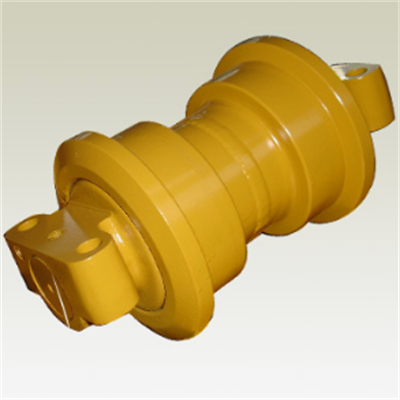

syredf (6)

Tracke Roller Features

Fujian Jinjia Machinery produces excavator chassis components, mainly including rollers, support rollers, tracks, loose rings, sprockets, steel tracks, track chains, track groups, track links, track shoes, and track shoes. Today we mainly Talk about the characteristics of the roller

The rollers play a very important role in the excavator. Generally, all the weight is transmitted to the ground to achieve full support. This is an ideal state, but the excavator will inevitably encounter extreme operations such as landslides and deflection during work, so at this time the supporting roller bears more weight, and it is a supporting roller to bear. In addition, the walking and working of the excavator in sewage and muddy water cannot be ignored. If muddy water enters the rollers, it will seriously affect its performance and affect the working performance of the whole machine. Therefore, its sealing is required to be reliable.



The composition of the track roller

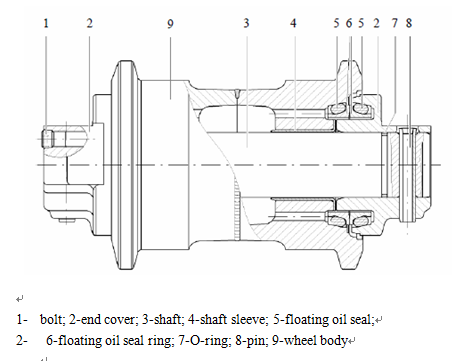

Figure 3.3 shows a typical structure of a roller. It is made up of wheel body 9, end cover 2, axle 3, axle sleeve 4, floating oil seal 5, floating oil seal ring 6, pin 8 etc. This is a standardized structural form, which is a straight-axis structure. This kind of shaft has a compact structure and simple manufacturing process, but it also has its own disadvantages, such as a small axial force bearing capacity, and generally speaking, it can be used in excavators. The shaft of the roller does not rotate in it, and the roller is locked on the track frame by virtue of the fixing of the two axle seats. The wheel body is welded, and the flange on the edge of the wheel clamps the track so that the track will not slip. The wheel body has a shaft and a shaft sleeve. The strength of the shaft sleeve is very high. This is because the tin bronze alloy coating layer is selected as the material when making the roller.

track roller-design

3 Typical structure of a roller

In order to ensure the cleanliness of the roller part, a floating oil seal structure is often used. The structure of the floating seal is compact and the working effect is excellent, so it is favored by many enterprises and manufacturers. The floating seal type consists of a metal oil seal ring and an O-ring. O-rings are set on the oil seals, and the oil seals do not rotate and are fixed on the shaft seat. The sealing ring is fixed in the groove of the shaft seat. When the sealing ring is compressed, it will produce a certain elastic deformation, so that the sections of the two oil sealing rings are always close to each other. Such a design will have a compact structure and realize the function of preventing muddy water from entering.

Selection and design of rollers,Track Roller selection and design

The rollers transfer the weight of the fuselage to the ground and play a supporting role. Excavators will be subjected to various impact forces when working and walking, and this situation is common. , so the ability to bear the load is particularly important. In addition, the working environment of the excavator is harsh, and the sealing performance must be guaranteed to be reliable; the arrangement of the rollers will be reflected in the specific calculations in the following chapters. The technical requirements and specifications of the track rollers for excavators can refer to the national construction industry standard JG/T59-1999 “Hydraulic Excavator Track Rollers” and the technical standards of the manufacturer.

3-2 Contact size of rollers

drawing

Installation size

Outline size

Matching size

Special size

A

B

D

E

d1

d2

D1

F

W173

335

300

590

160

55

65

550

82

W203

370

410

650

205

70

80

600

105

According to the previously selected pitch of 203mm, the selection of supporting wheels is the design parameter of W203
