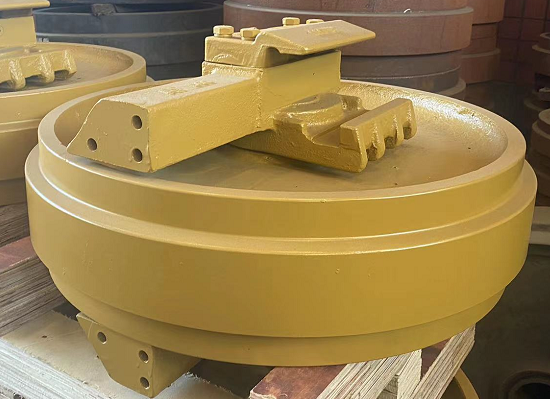

D6H Bulldozer Undercarriage Parts Track Front Idler
Product Description
The idler (guide wheel) is used to guide the track to rotate correctly and prevent deviation and derailment. The idler (guide wheel) of some hydraulic excavators also functions as a roller, which can increase the contact area between the crawler and the ground and reduce the specific ground pressure. Most of the wheel surfaces of the idler are smooth, with a shoulder ring in the middle as the guide, and the ring surfaces on both sides can support the chain and the roller. The shoulder ring in the middle of the idler (guide wheel) should have sufficient height and the slope on both sides should be small. The smaller the distance between the guide wheel and the nearest roller, the better the guiding performance.
1-oil plug 2 support cover 3 adjusting shim 4 left carriage 5 guide axle 6 O-ring 7 floating oil seal 8 guide wheel 9 sliding bearing 11 right carriage 12 guide wheel bracket 13 stop pin 14 support spring assembly 15 spring pressing plate 16 seat plate 17 guide plate
As shown in the figure, the structure of the guide wheel (guide wheel) is installed on the guide shaft 5 through two sliding bearings 9 in the hole, and both ends of the shaft 5 are fixed to the right carriage 11 and the left carriage 4. The left and right carriages are installed on the guide plate 18 on the carriage by the seat plate 16 pressed by the support spring assembly 14, and the lower hook plane of the carriage is closely contacted with the guide plate 17, thereby eliminating the gap. The carriage can smoothly slide back and forth along the guide plates 17 and 18 on the carriage.
An adjusting shim 3 is provided between the support cover 2 and the bracket to ensure that the gap between the support cover 2 and the side of the gantry does not exceed 1mm. The purpose of installing the support cover 2 is to prevent the guide wheel from tilting sideways, thereby preventing the rail from falling off. The space between the idler and the shaft 5 is filled with lubricating oil for lubrication, and the two floating oil seals 7 and the O-ring seals 6 and 10 are used to maintain the seal. The idler shaft 5 is axially positioned by a stopper pin 13.
The excavator guide wheel adopts the box structure cast by resin sand process. The appearance quality of the wheel body has reasonable mechanical structure performance. The matrix is normalized to obtain good impact resistance, and the medium frequency induction quenching heat treatment of the track surface. Surface hardness To hrc48-54, the depth is not less than 6mm, with wear resistance in harsh conditions
ILDER: forged material (50MNb)
Depth: 6mm (Shaft1.5-2mm) Hardness: HRC48-54
IDLER body: forging - turning - quenching - fine turning - pressure bushing - welding slag shovel (cleaning the surface of the machine body)
Shaft Forging Turning Operation Drill Tapping Quenching and Tempering Grinding
Track shoe Parts: Test Paint Check Storage
| Material | 50Mnb | |
| Finish | Smooth | |
| Technique | Casting/Forging | |
| Surface Hardness | HRC52 , Depth6mm | |
| Colors | Black or Yellow | |
| Warranty Time | 1440 Working Hours | |
| Certification | IS09001-9001 | |
| MOQ | 2 Pieces | |
| FOB Price | FOB Xiamen US$ 25-100/Piece | |
| Delivery Time | Within 30 days after contract established | |
| Payment Term | T/T,L/C,WESTERN UNION | |
| OEM/ODM | Acceptable | |
| type | bulldozer undercarriage parts
|
|
| Moving Type: | Crawler bulldozer | |
| After-sales Service Provided: | Video technical support, Online support |
We all use the best 50mnb steel as raw materials, and use differential quenching to increase the hardness of the IDLER , increase the wear resistance of the IDLER , and delay the wear of the IDLER body.

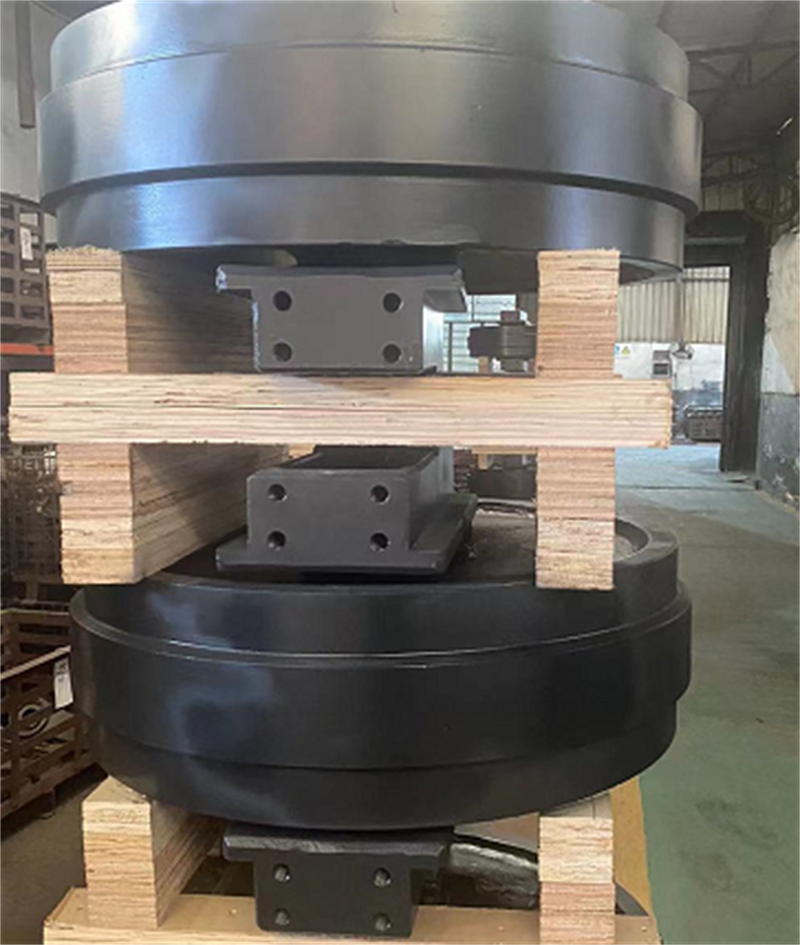

Packaging & Shipping
ABOUT US
Fujian Jinjia Machinery Co.,Ltd. is developing from Quanzhou Hongda Machinery Co.,Ltd. The company has dedicated to the manufacturing of crawler undercarriage parts since 1990, which has been more than 30years so far. Now we have established our own casting, forging and machining production centers.
JINJIA Machinery has always been insisting on the operation policy of “Customer first, Quality first” . Our mission is to make customer satisfaction. Just because of this, these years the company has obtained high reputations and solid foundation in the machinery industry. Today our production scales have been constantly expanding, with a wide range of product categories. Our products have been popular in domestic markets as well as the international markets such as Europe, America, South East of Asia, Middle East, etc. We have established good business relationships with famous companies around the world. Welcome to visit our factory for further more technological communications!
FAQ
1.What is your delivery time?
FOB Xiamen or any Chinese port : 20 days . If there are any parts in stock , our delivery time is only 0-7 days.
2. What about Quality Control?
We have a perfect QC system for the perfect products. A team who will detect the product quality and specification piece
carefully, monitoring every production process until packing is complete, to ensure product safety into container.
